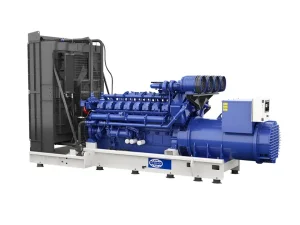

Featured Fuel-Optimized Diesel Generator Sets (Series I)
Pre-tested, factory load-bank certified diesel generator units configured with fuel-saving Perkins, FG Wilson, and heavy-duty industrial diesel power plants for global procurement contracts.
The True Meaning of "Cheap Generator Diesel Fuel": A Total Cost of Ownership (TCO) Analysis
Procurement directors often mistake "cheap" for low purchase quotes. In high-output decentralized power, diesel fuel consumption accounts for 70% to 85% of total lifecycle expenditures over 20,000 operational hours.
The Thermodynamic & Economic Physics of Industrial Genset Fuel Economy
In thermal power generation, the concept of a cheap generator diesel fuel exporter and service is defined by the unit cost per generated kilowatt-hour ($/kWh), not merely the invoice sticker price of the crated equipment. When an electrical genset runs 4,000 to 8,000 hours per year in mining, deep-sea marine engineering, remote telecommunication clusters, or baseload island grids, fuel burn outpaces capital expenditure (CAPEX) within the first 14 to 18 months of commissioning.
For instance, an uncalibrated 1000 kVA generator burning 218 g/kWh compared to an electronically governed, common-rail direct-injection FG Wilson or Perkins-powered system burning 198 g/kWh represents an operational divergence of over 24,000 liters of ultra-low sulfur diesel (ULSD) annually at a 75% prime duty cycle. Across a multi-megawatt installation, poor thermal fuel optimization translates directly into tens of thousands of dollars in lost operating margin.
| Generator Load Capacity | Standard Legacy Fuel Burn (100% Load) | Fuel-Optimized System Burn (100% Load) | 24-Hour Continuous Saving | 1-Year Fuel OPEX Delta (USD @ $0.95/L) |
|---|---|---|---|---|
| 65 kVA – 110 kVA (Small Range) | 16.8 L / hr | 14.1 L / hr | 64.8 Liters | $22,469 saved / unit / year |
| 225 kVA – 660 kVA (Medium Range) | 122.4 L / hr | 108.6 L / hr | 331.2 Liters | $114,842 saved / unit / year |
| 800 kVA – 1500 kVA (High Power) | 255.0 L / hr | 228.4 L / hr | 638.4 Liters | $221,365 saved / unit / year |
| 2000 kVA – 2500 kVA (Grid / Hyperscale) | 510.0 L / hr | 461.2 L / hr | 1,171.2 Liters | $406,123 saved / unit / year |
Global Procurement Demands & Macro Industry Solutions
How contemporary multinational enterprises, infrastructure developers, and municipal utility providers structure diesel generator fueling, emission tolerances, and continuous output integrity.
Hyperscale Data Centers & Financial Nodes
Mission-critical tier-IV topologies require sub-10-second automatic transfer switch (ATS) coupling with zero frequency variance. Generators operate with dual-redundant fuel lift pumps and on-board filtration skids to eliminate common-rail injector starvation during load steps.
- Transient load recovery < 1.5 seconds
- Double-wall sub-base tanks (24h–72h autonomy)
- Synchronous paralleling up to 32 units
Extractive Mining & Remote Pipeline Ops
Harsh operating profiles demanding high-ambient derating resilience up to +52°C, cyclonic dual-stage air filtration, and heavy centrifugal fuel-water separation to process varying cetane quality without valve seat erosion.
- Heavy-duty desert/arctic engineered canopies
- Automated fuel polishing & biocide dosing
- Engineered for continuous 8,000h prime duty
Urban Healthcare & Municipal Grids
Strict noise footprint restrictions (<65 dBA @ 7 meters) coupled with ISO 8528 G3 load acceptance. Acoustic-baffled air intakes, multi-stage residential exhaust mufflers, and low NOx/PM recirculating catalysts protect urban air quality.
- Super-silent acoustic canopy technology
- Meets stringent hospital power standards
- Low vibration spring mounts & zero exhaust leaks
Fuel Quality Matrix, Viscosity Tolerances & Combustion Dynamics
Understanding the chemical, thermodynamic, and mechanical interplay between generator fuel feed systems, injection pressures, and operational longevity.
Fuel Viscosity, Cetane Number, and High-Pressure Common Rail (HPCR) Systems
In modern fuel-optimized diesel engines—including high-pressure Perkins engines, FG Wilson integrated architectures, and Weichai industrial platforms—injection timing, fuel atomization, and hydraulic droplet dynamics are heavily dictated by fuel quality standards. When buying generator equipment from an exporter, international site engineers must align equipment fuel delivery mapping with ASTM D975 (Grade 2-D / 1-D) and EN 590 diesel standards.
Fuel viscosity directly impacts the mechanical lubrication of internal high-pressure injector plungers. Viscosities below 2.0 cSt at 40°C cause accelerated scuffing and pump cavitation, while fuel viscosity above 4.5 cSt inhibits atomization, resulting in incomplete combustion, crankcase oil dilution, high unburned hydrocarbon emissions, and carbon buildup on turbocharger turbine wheels.
| Fuel Metric / Property | Standard Specification (ASTM D975 / EN 590) | Combustion Impact on Generator | Factory Mitigation Solution |
|---|---|---|---|
| Cetane Number (CN) | Minimum 45 – 51 | Lower CN causes ignition delay, audible knocking, and white smoke startup | Dynamic ECU injection timing advance mapping |
| Sulfur Content | ULSD < 15 ppm (or High Sulfur up to 500 ppm) | High sulfur generates sulfurous acid in exhaust and corrodes valves | Specialized high Total Base Number (TBN) lubrication oils |
| Water Contamination | < 0.05% (500 ppm) Max | Causes micro-corrosion, fungal growth, and HPCR nozzle failure | Standard three-stage centrifugal coalescing filtration |
| Biodiesel Blend (FAME) | B5 to B20 (EN 14214) | Elastomer seal swelling, fuel oxidation, and varnish deposits | Viton O-rings, specialized synthetic hoses & fuel coolers |
Export Quality Assurance, Factory Acceptance Testing (FAT) & Compliance
Every kilowatt exported by Beijing Xinda Creation Machinery Equipment Co., Ltd. undergoes multi-tiered quality control, dynamic electrical load steps, and rigorous logistics preparation.
ISO 9001 / 14001 / 45001
Fully certified quality management, environmental safety, and occupational health systems audited regularly to ensure repeatable manufacturing and assembly tolerances.
Full Load Bank FAT
Every generator undergoes 0%, 25%, 50%, 75%, 100%, and 110% overload testing on our smart digital resistive-reactive load banks before crating, validating BSFC curves.
Heavy-Duty Export Packaging
Anti-humidity nitrogen-purged shrink wrap, rust-inhibiting VCI desiccants, and fumigated steel-framed seaworthy skids protecting electronic panels and copper windings.
Turnkey Commissioning Support
Global field engineers dispatching remote ATS configuration, on-site synchronizing panel commissioning, and genuine Perkins & FG Wilson component provisioning.
Technological Roadmap: The Evolution of Industrial Generator Fuel Systems (2025–2035)
Navigating the global decarbonization imperative with hybrid battery energy storage (BESS), Hydrotreated Vegetable Oil (HVO), and AI-driven automated fuel telemetry.
Phase 1: 100% Drop-In Renewable Diesel & HVO Biofuel Certification
The global standby power industry is undergoing a critical transition. All new FG Wilson and Weichai generator sets exported by Cinda Creation are fully engineered for paraffinic fuels compliant with EN 15940. Hydrotreated Vegetable Oil (HVO) reduces net greenhouse gas carbon emissions by up to 90%, produces 30% less particulate matter, and exhibits near-infinite storage life without microbial degradation, entirely solving the standby fuel aging challenge experienced in traditional fossil diesel installations.
Phase 2: Genset + BESS Hybrid Microgrid Architecture
Operating a 1000 kVA diesel generator at below 30% load leads to catastrophic "wet stacking"—unburned fuel escaping past exhaust valves, diluting oil, and wasting expensive diesel. Our hybrid microgrid packages integrate lithium iron phosphate (LFP) Battery Energy Storage Systems (BESS). Under low-load profiles, the battery powers the load silently with zero emissions. When load steps exceed 60%, the generator auto-starts, running exclusively in its peak thermal efficiency sweet spot (70%–80% load) while simultaneously fast-charging the BESS, cutting overall fuel burn by up to 45%.
Phase 3: AI-Predictive Telemetry & Dynamic Injection Adjustment
Integrating 4G/5G edge IoT controllers on deep-sea and cross-border generator deployments allows real-time telemetry of manifold air temperature, barometric pressure, exhaust gas temperature (EGT), and fuel density. AI algorithms continuously trim injector pulse widths to maintain stoichiometric combustion across fluctuating ambient temperatures and barometric elevations, preventing derating and unoptimized fuel waste.

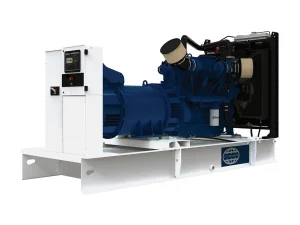

Featured Fuel-Optimized Diesel Generator Sets (Series II)
Heavy-duty urban soundproof canopies, open frames, and large-capacity prime power systems tested for low-noise emissions and maximum fuel conversion efficiency.
Engineering FAQ: Generator Fuel Systems & Global Procurement
Direct technical solutions answering the most complex mechanical, logistical, and electrical queries posed by overseas EPC contractors and facility directors.
How does fuel quality affect generator warranty and high-pressure fuel injectors?
How does fuel quality affect generator warranty and high-pressure fuel injectors?
Modern common-rail engines (such as Perkins and Weichai platforms) operate at injection pressures between 1,600 and 2,500 bar. High-particulate or water-contaminated diesel destroys the microscopic clearances inside electro-hydraulic needle valves in as little as 200 operating hours. Factory warranties require compliance with ISO 4406 fuel cleanliness standards (typically class 18/16/13). To protect buyer operations in regions with substandard diesel, Cinda Creation installs heavy-duty pre-filter coalescers and water-separating filter heads that maintain fuel purity and prevent warranty invalidation.
What is "wet stacking" and how can fuel optimization stop it during low-load operation?
What is "wet stacking" and how can fuel optimization stop it during low-load operation?
Wet stacking occurs when a diesel generator is continuously loaded at less than 30% of its prime capacity. Cylinder combustion temperatures drop below the flash point of heavy hydrocarbon fuel chains, causing unburned diesel, soot, and condensed acids to accumulate in the exhaust manifold, turbocharger housing, and exhaust pipe. Our engineering solutions combat wet stacking through smart automatic load sequencing, motorized radiator louvers that maintain jacket water operating temperatures above 80°C, and synchronized multi-genset load sharing that stops unneeded units when demand falls.
What are the critical variables when sizing daily fuel tanks versus bulk storage?
What are the critical variables when sizing daily fuel tanks versus bulk storage?
Sub-base integrated day tanks are typically sized for 8 to 24 hours of autonomous continuous run time based on a 75% prime loading curve (e.g., approximately 180 to 220 liters per hour on a 1000 kVA genset). For multi-megawatt facilities, bulk storage sizing must balance resupply delivery intervals, fuel shelf life (maximum 6 to 12 months for standard diesel without filtration polishing), ambient temperature thermal expansion (0.08% volume change per °C), and mandatory double-wall secondary containment in compliance with local environmental spillage mandates.
Can cheap diesel generators run reliably on B20 Biodiesel or 100% HVO?
Can cheap diesel generators run reliably on B20 Biodiesel or 100% HVO?
Yes. All FG Wilson and modern export generator engines supplied by Cinda Creation can operate on 100% Hydrotreated Vegetable Oil (HVO, EN 15940) without any mechanical modification or derating, delivering identical torque and transient load acceptance. When utilizing traditional Fatty Acid Methyl Ester (FAME) biodiesel blends up to B20 (ASTM D7467), we equip the engine with fluorocarbon (Viton) fuel return lines, high-grade fuel pre-heaters, and shortened engine lube oil sampling intervals to account for biodiesel dilution tendencies.
What spare parts and field services does Cinda Creation supply for international fleets?
What spare parts and field services does Cinda Creation supply for international fleets?
We provide complete lifecycle support starting from our Beijing export logistics hub. This includes 500-hour and 1000-hour preventative maintenance kits (OEM oil filters, fuel/water separators, intake cartridges), genuine Perkins fuel lift pumps, calibrated common-rail injectors, Deep Sea Electronics (DSE) / ComAp digital synchronization controllers, and complete technical diagnostics. Our international field team offers 24-hour technical response, schematic engineering, and on-site commissioning oversight across Southeast Asia, Central Asia, the Middle East, Africa, and Latin America.
