What is the difference between prime and standby power ratings?

A standby rating applies to emergency use for the duration of a utility outage. A prime rating applies to unlimited annual running hours at a variable load. For example, the FG Wilson P250-5 is rated 230 kVA (184 kW) prime and 250 kVA (200 kW) standby at 50 Hz. Size your set on prime power if it will be your main source of electricity.

How do I convert kW to kVA when sizing a diesel generator?

Divide the real power in kW by the power factor, which is 0.8 for most three-phase diesel generator sets. 184 kW divided by 0.8 equals 230 kVA. Add a margin for motor starting currents and future load growth.

Should I choose a silent diesel generator or an open frame generator?

Silent generator sets use an acoustic, weatherproof canopy and suit hospitals, residential areas, events and outdoor sites. Open frame generators suit plant rooms that already provide ventilation, noise control and weather protection, and they offer easier service access.

What warranty and after-sales support does Cinda Creation provide?

Generator sets are covered by a 12-month warranty counted from the start-up date. Our team responds to technical and service requests within 24 hours and supplies Perkins generator parts for maintenance.

What information is needed for an accurate generator configuration?

Send your load list or required kW/kVA, voltage, frequency (50 Hz or 60 Hz), phase, standby or prime duty, site altitude and ambient temperature, enclosure type, fuel tank autonomy and whether an automatic transfer switch is required.

Cheap Mini Portable Generator Supplier & Exporter

Core Product Inventory — Phase I

High-Efficiency Portable & Compact Diesel Generators

Engineered to deliver high power density, fuel efficiency, and structural durability. Explore our immediate export-ready models.

Fg Wilson 225-938KVA High Efficiency Diesel Generator Set P605-3

FG Wilson 225-938kVA Diesel Generator Set P605-3

Request Specs & Quote

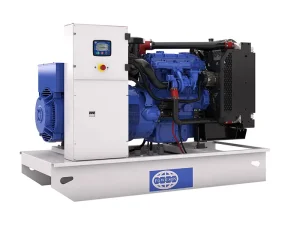

Wilson Small Small Range 220 kVA Power Generator P110-6

Wilson Small Range <220 kVA Generator P110-6

Request Specs & Quote

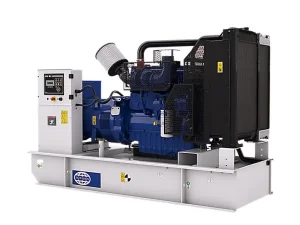

Medium Range 225-838kva P250-5 Durable Diesel Generators

Wilson P250-5 Medium Range Durable Generator

Request Specs & Quote

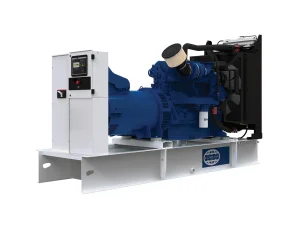

Wilson Open Type Medium Diesel Generator Sets P550-3

Wilson Open Type Medium Genset P550-3

Request Specs & Quote

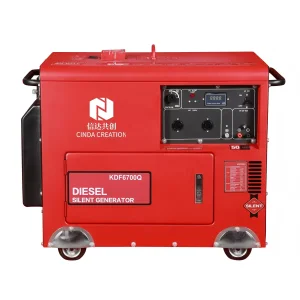

KDF6700Q Quiet Generator Set Portable Power Source

KDF6700Q Portable Quiet Generator Set 4.5kVA–5kVA

Request Specs & Quote

High-Performance High-Pressure Air-cooled Diesel Engine KD7

Air-cooled High-Pressure Diesel Engine KD7

Request Specs & Quote

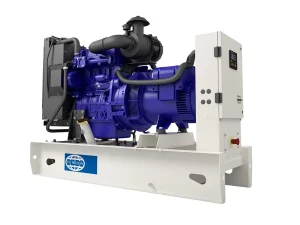

China Small Range 220 kVAP18-6 Skid FG Wilson Generators

China Small Range P18-6 (Skid) Generator Set

Request Specs & Quote

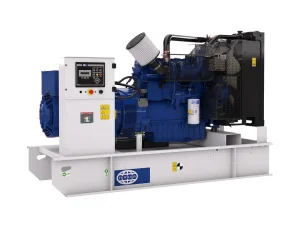

FG Wilson 225-938kVA Stable Power Supply Solution P275-2

FG Wilson Stable Power Solution Genset P275-2

Request Specs & Quote

Procurement Intelligence

Demystifying Cheap Mini Portable Generators: Strategic Global Sourcing

How international procurement managers navigate total cost of ownership, duty ratings, fuel economics, and high-spec modular power delivery.

In modern industrial procurement, the term cheap mini portable generator has fundamentally shifted from defining low-grade, sacrificial emergency sets to designating highly optimized, cost-engineered decentralized power solutions. When international project developers, civil contractors, and municipal utilities seek budget-friendly portable gensets, their objective is not compromised engineering—it is the minimization of Capital Expenditure (CAPEX) coupled with predictable, low-maintenance Operational Expenditure (OPEX).

Achieving this operational sweet spot requires selecting manufacturers that harness advanced modular casting, optimized copper-to-aluminum winding ratios, and localized assembly lines. Mini diesel generators operating between 3 kVA and 30 kVA serve as vital nodes for telecom towers, mobile diagnostic units, oil pipeline valve monitoring, and field construction sites. Securing high-performing units at factory-direct pricing demands understanding the technical trade-offs between open-frame frames, sound-attenuated acoustic enclosures, and advanced inverter governors.

Key Engineering Finding: Modern cost-engineered mini portable diesel generator sets achieve thermal efficiencies exceeding 34% by integrating high-pressure direct injection (HPDI) systems into single- and twin-cylinder air-cooled engines. This lowers fuel consumption per kilowatt-hour by up to 18% compared to traditional small petrol generators, offsetting initial equipment investment within 800 hours of runtime.

Prime vs. Standby Duty Calibration

Over-sizing increases wet stacking risks; under-sizing causes voltage collapse during inductive load surges. We calculate continuous running margins at 75–80% prime load ratings to maintain mean time between overhauls (MTBO) above 3,500 hours.

Harmonic Distortion (THD) Control

Modern telecommunication switchboards and variable speed drives mandate Clean Power output. Our compact units feature brushless excitation systems and digital AVR stabilization to hold Total Harmonic Distortion (THD) below 5%.

Extreme Environmental Hardening

Operating in tropical high-humidity or sub-zero environments demands specialized treatment. Alternators receive Class H tropicalized insulation, while cold-climate builds include air pre-heaters and block-heating elements for instantaneous cold starts.

Strategic Industrial Architecture

Why China's Factory Ecosystem Leads in Cost-Engineered Gensets

Achieving competitive procurement through vertical integration, regionalized part sourcing, and institutionalized quality standards.

Integrated Component Ecosystem

China hosts the world's most concentrated cluster for air-cooled diesel engines, cold-rolled silicon steel laminations, and automated stamping presses. This co-location eliminates international freight on raw components and cuts supply lead-times to under 15 days.

Global Regulatory Compliance

Export models are pre-certified across global benchmarks: CE Machinery Directive 2006/42/EC, ISO 8528 alternating current generator set standards, and regional emissions guidelines (EU Stage V, EPA Tier 4 Final adaptable configurations).

End-to-End Factory Acceptance Tests (FAT)

Every small and mini generator undergoes 100% factory load-bank testing across 0%, 25%, 50%, 75%, 100%, and 110% overload conditions. Thermal stability, vibration frequency, and voltage droop are digitally cataloged prior to port dispatch.

Global B2B Sourcing Checklist for Mini Portable Generators

To prevent hidden port-of-entry delays or field installation incompatibilities, corporate buyers should specify these parameters prior to contract finalization:

Frequency/Voltage:
50Hz (230V/400V) vs 60Hz (120V/240V/480V) dual-wound alternators.

Start Mechanism:
Manual recoil, electric 12V key-start, or fully autonomous ATS two-wire signal input.

Canopy Attenuation:
Open skid (85 dBA @ 7m) vs Super-Silent Soundproof Enclosure (≤ 68 dBA @ 7m).

Fuel Autonomy:
Standard base tanks (8 hours continuous) vs Extended run base frame fuel cells (≥ 24 hours).

Real-World Deployment

Mission-Critical Applications & Emerging Sector Trends

From disaster recovery in micro-hospitals to decentralized telecom backhaul, portable diesel generators remain essential assets.

Off-Grid Telecom & 5G Base Stations

Rural microcell base stations require autonomous, uninterrupted DC power backups. Mini diesel generators with integrated ATS interface with rectifiers and battery arrays, automatically cycling on only when battery banks drop to 48V thresholds.

Emergency Medical & Field Hospitals

Mobile surgical clinics and remote pharmaceutical refrigeration demand ultra-stable voltage stability. Silent enclosed mini-gensets offer mobile resilience during grid collapse, preventing vaccine spoilage without exceeding hospital noise regulations.

Linear Energy & Pipeline Monitoring

Natural gas and oil transit corridors cross remote, unpopulated terrain. Small diesel units supply uninterrupted prime power to supervisory control and data acquisition (SCADA) telemetry, automated shutoff valves, and cathodic protection systems.

34.2%

Thermal Efficiency Rating

< 68 dB

Sound-Attenuated Canopies

100%

Electrolytic Copper Alternators

ISO/CE

International Grid Compliant

Core Product Inventory — Phase II

Small Range, Silent Enclosed & Specialized Gensets

Complete export portfolio including silent canopies, Perkins-powered compacts, and multi-tier energy generation sets.

Wilson Small Range 220 kVA Portable Diesel Generator P50-3

Wilson Small Range Portable Generator P50-3

Request Specs & Quote

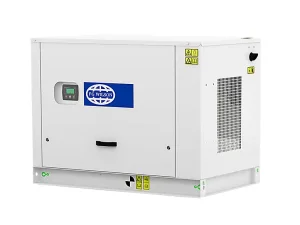

China Wilson Generator Set P16.5-6S Compact and Efficient

Wilson Compact Generator Set P16.5-6S

Request Specs & Quote

China Wilson Small Type 33KVA Reliable Energy Source P33-6

Wilson Small Type 33kVA Genset P33-6

Request Specs & Quote

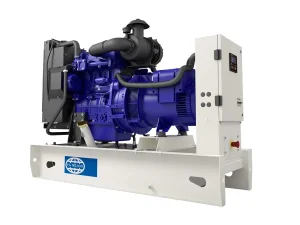

China Wilson Silent Type Small Diesel Generator Sets P9.5-4

Wilson Silent Small Diesel Genset P9.5-4

Request Specs & Quote

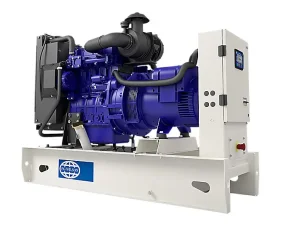

Wilson Small Range Silent Power Generator P12-1S

Wilson Small Silent Generator P12-1S

Request Specs & Quote

Wilson Small Type Low Noise Power System P55-4

Wilson Small Type Low-Noise System P55-4

Request Specs & Quote

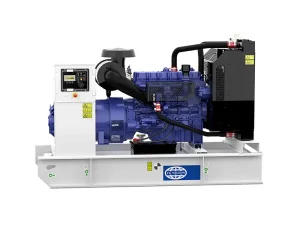

Wilson Small Type Fuel Optimized Diesel Generator Set P175-2

Wilson Small Fuel-Optimized Genset P175-2

Request Specs & Quote

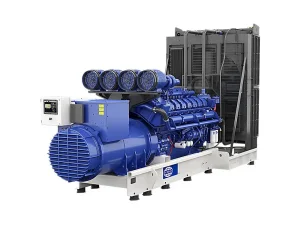

FG Wilson High Efficiency Energy Saving Diesel Generator Set P2500-1

FG Wilson Energy-Saving Genset P2500-1

Request Specs & Quote

Procurement Transparency

Frequently Asked Questions: Mini & Portable Genset Sourcing

Expert answers addressing electrical integration, factory verification, port logistics, and service warranties.

What makes a mini portable generator "cheap" without sacrificing operational reliability?

Cost reduction stems from automated robotic welding of skid platforms, unified tooling across 3kVA–15kVA engine blocks, and proximity to cold-rolled silicon steel mills in China's industrial zones. By procuring critical sub-assemblies directly from specialized regional clusters, raw manufacturing costs decrease by 25–40% compared to European or North American facilities, while maintaining identical ISO 8528 reliability benchmarks.

How do air-cooled and water-cooled diesel engines compare in small genset configurations?

Air-cooled engines (such as single-cylinder 186FA or 188F engines) are significantly lighter, have zero coolant leak points, require less maintenance, and offer lower upfront purchasing costs, making them the preferred choice for truly mobile, portable applications below 8 kVA. Multi-cylinder water-cooled engines (e.g., Perkins or Yangdong units) are recommended for stationary continuous prime power, heavy load profiles above 10 kVA, or environments with ambient operating temperatures exceeding 45°C.

Can mini portable generators safely power sensitive electronic and IT equipment?

Yes, provided the generator is configured with a high-accuracy Digital Automatic Voltage Regulator (AVR) or pure sine wave inverter board. Standard mechanical governors can produce frequency swings during abrupt load steps. For telecom, computing, or biomedical installations, specify AVRs with ±1.0% voltage regulation and brushless alternators with Total Harmonic Distortion (THD) under 5%.

What warranty, spare parts, and after-sales support mechanisms are supplied to overseas buyers?

Standard factory export terms include a 12-month warranty or 1,000 operational hours from commissioning date, whichever is reached first. Exporters provide complete consumable packages (fuel filters, oil filters, air filters, AVRs, and carbon brushes) within container shipments. Additionally, critical spare parts like Perkins-compatible pistons, injectors, and control modules can be dispatched via international air freight within 24 to 48 hours.

What information is needed to obtain an immediate, accurate B2B factory quotation?

To produce an exact bill of materials (BOM), please specify: 1) Continuous load profile (kW/kVA); 2) Phase and line voltage (e.g., single-phase 220V vs three-phase 400V); 3) Operating frequency (50Hz vs 60Hz); 4) Starting requirements (manual recoil vs electric ATS); 5) Enclosure requirements (open frame roll-cage vs silent acoustic soundproofing); and 6) Target port of delivery (FOB, CIF, or DDP terms).
