Standby power (Emergency Standby Power - ESP) is defined under ISO 8528-1 as the maximum electrical output available during a variable electrical power sequence, under stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage. It permits no overload and is intended for a maximum of 200 hours per year. Prime power (PRP) is available for an unlimited number of annual running hours with variable load, typically permitting a 10% overload capability for 1 hour every 12 operating hours. Sizing an emergency dynamo on prime capacity guarantees higher thermal endurance and extended overhaul cycles.

Apparent power (kVA) is calculated by dividing real power (kW) by the operational power factor (φ), which is standardized at 0.8 lagging for commercial three-phase industrial alternating current systems: kVA = kW ÷ 0.8. For example, a facility requiring 400 kW of actual active work capacity requires a dynamo rated for at least 500 kVA. Furthermore, sizing must incorporate inrush multiplier factors for large inductive squirrel-cage induction motors, which routinely draw 6× to 8× their full load amperage (FLA) upon direct-on-line (DOL) startup.

Standard genset output is rated at an ambient temperature of 25°C (77°F) at an altitude of up to 100 meters above sea level according to ISO 3046. For every 300 meters above 1,000 meters, an internal combustion engine experiences an atmospheric density loss leading to an approximate 3.5% derating in thermal output. Simultaneously, alternator stator winding insulation (Class H) suffers reduced heat exchange efficiency above 40°C ambient temperatures, requiring either oversized alternators or enhanced high-flow radiator configurations.

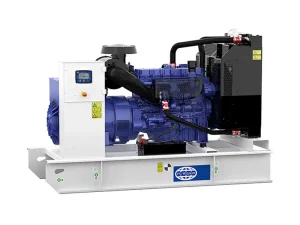

Open-type units are engineered exclusively for indoor plant rooms, basements, or dedicated mechanical outbuildings where sound baffling, louvers, and air exchange ventilation are already built into the building structure. They provide 360-degree immediate accessibility for maintenance, component replacements, and lower initial purchase capital. Silent canopied enclosures, constructed with electro-galvanized zinc sheeting and non-combustible sound-absorbing acoustic foam, are designed for outdoor weatherproof use, hospital zones, and urban job sites where decibel levels must remain below 70–75 dBA at 7 meters.

All power generation packages, alternators, and diesel dynamos supplied by Beijing Xinda Creation Machinery Equipment Co., Ltd. are covered by an ironclad 12-month manufacturer warranty counting directly from commissioning date or 1,000 operational hours (whichever matures first). Furthermore, systems are managed under certified ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Occupational Health & Safety) standards, supported by full Perkins and Weichai authentic part depots and a 24-hour technical response window.
