China Wilson Small Range ＜220 kVA Silent Diesel Generator P13.5-6 Supplier, Exporter

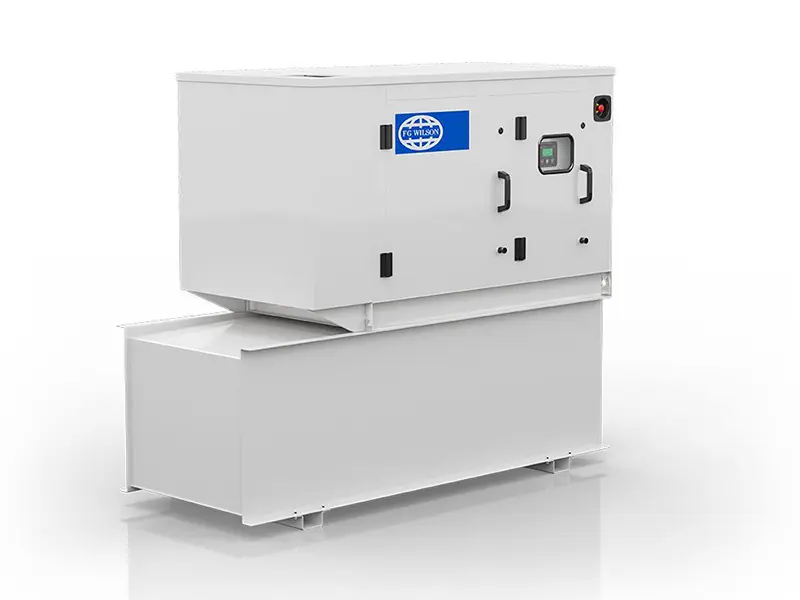

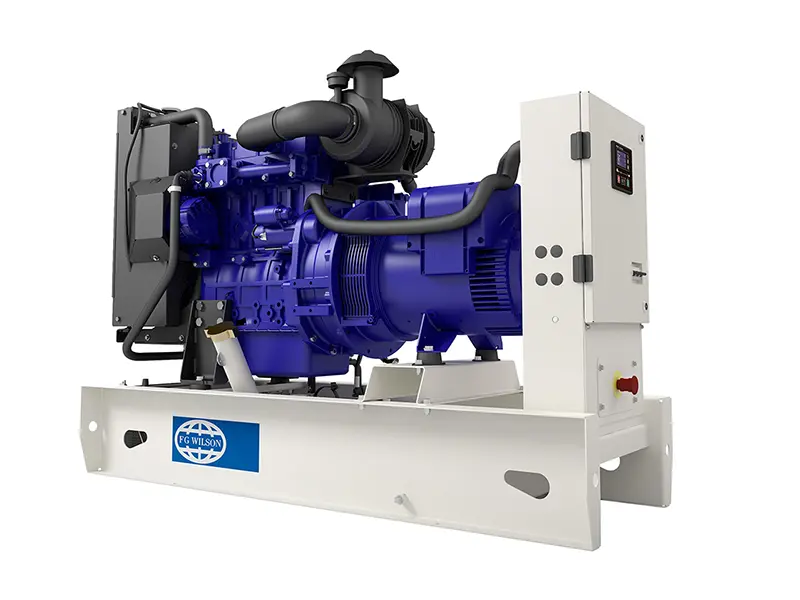

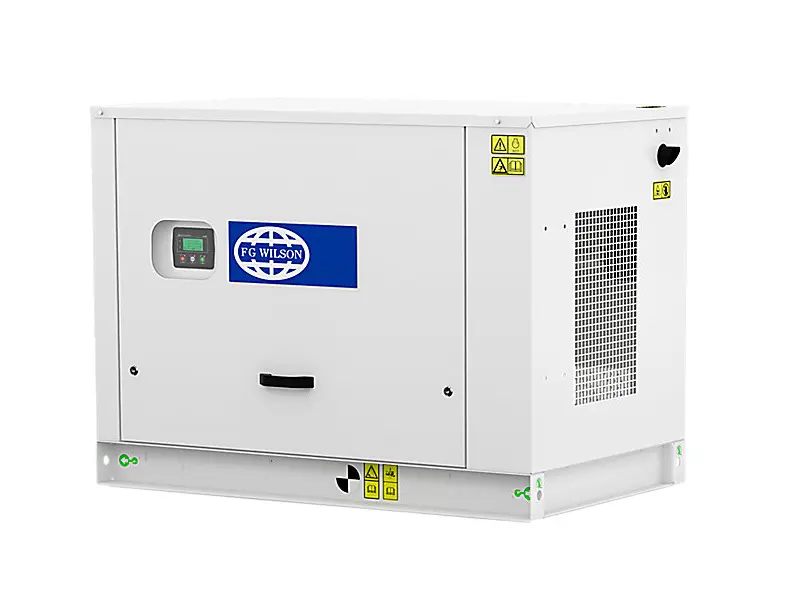

Open-type generator sets are mounted directly on a steel base frame without an enclosure, making them optimal for dedicated generator rooms with external acoustic treatment. Silent models include weather-proof, sound-attenuating canopies designed for outdoor use or noise-sensitive environments.

Calculate the total wattage of all electrical loads required to run simultaneously, factoring in startup surge currents for motorized appliances. It is recommended to choose a generator with a continuous prime rating 20-25% higher than your calculated total demand to prevent overload.

Standard configurations include single-phase 230V and three-phase 400/230V options operating at 50 Hz. Custom voltage and 60 Hz configurations can also be accommodated depending on local power grid and application specifications.

Routine maintenance should be performed every 250 to 500 operating hours or at least annually. This includes inspecting fuel lines, changing the engine oil and filters, verifying battery charge levels, and checking cooling and exhaust systems.

Yes, when integrated with an Automatic Transfer Switch (ATS) and an auto-start digital control panel, these generator sets automatically start and transfer power within seconds of a utility outage.
